RPS RUGGED!+™ POWER OVER ETHERNET SWITCH

RUGGED!+™ PoE SWITCH – UNIVERSAL MOUNT

KEY FEATURES

  • RUGGED!+™ IP66/67 ruggedization
  • Designed for communications, security, or sensors in hostile & remote areas
  • Power over Ethernet up to 90 watts, IEEE 802.3 AF/AT/BT
  • Lightweight Aluminum packaging: 18lbs
  • Automatically adjustable input voltage to a regulated 56VDC output

DOWNLOAD SPECIFICATION PDF

REQUEST INFORMATION

KEY FEATURES

• Power over Ethernet (POE) 15, 30, or 60 Watts

• Military or Commercial Grade

• Designed for remote telecommunications, security, or sensors in remote areas

• RUGGED!+™ IP66/67 ruggedization

• Automatically Adjustable Voltage to a Regulated 58VDC output

PRODUCT OVERVIEW

RPS Rugged!+™PoE Switch is designed and built to handle harsh mission critical environments in noisy electrical conditions anywhere in the world.

RPS Rugged!+™PoE Switch is designed and built to handle harsh mission critical environments in noisy electrical conditions. This MIL STD tested, IP67 rated PoE switch is capable of 90 watts per port across four gigabit ports. Two Multimode Fiber ports provide remote, high speed access. One device to interconnect and power communications equipment, cameras and sensors.

The Military Grade Switch is designed for tactical communications and is built to MIL-STD-810G. The highly reliable, light weight, small form factor is designed to take shock, vibe, high temps, high humidity and is passively cooled. The Terra Ferma RPI Rugged!+™PoE power supply is designed, tested, & certified to MIL-STD 810-H, MIL-STD 461.G, and FIPS 140-2 validation.

QUIET UNIVERSAL CONSTRUCTION

Rugged, all aluminum IP67 test chassis provides quiet operation while keeping the elements out. Universal mounting positions allow tower, pole, vehicle or no mounting at all to keep all your devices powered securely with an optional Modular Battery Back up with 4 hours to 3 day capacity.

made in usa black logo
null

DESIGNED & MANUFACTURED IN THE USA

SMART ELECTRICAL FEATURES OF RUGGED!+™ PoE SWITCHES

Accept Any Power Source
Global AC power, DC batteries, generators, military vehicle, Telco -48V power, Solar with optional Battery Backup

Automatic Regulated Voltage Output
Regardless of input power, output power remains a stable 56VDC PoE

Automatic Adjustable Load Current
Output current adjusts from zero to almost 2 Amps based on the power needed by the device(s) plugged in to the ethernet port. Based on IEEE standard 802.3 AF/AT/BT as negotiated by PoE devise being powered

Automatic Power Reset
Auto-reset input power connections or output power supply in the event of over/under voltage or current

Simple Operational Light Displays
Provides status of Power and PoE

Reverse Polarity Protection
Provides assurance against damage due to polarity cross-up at installation

Standard IEEE configuration
PoE up to 90 watts, IEEE 802.3 af/at/bt

CONSTRUCTION & ENVIRO FEATURES OF RUGGED!+™ PoE INJECTORS

Sealed Housing Construction
Designed for outdoor use -sustained high winds, driving rain, freeze/thaw, UV.

Fanless
No electric motors to fail and no filters to clean (reduces MTBF)

Light Weight
Can be mounted on mast or other locations where weight is a concern.

Optional Pole Mount Bracket
Makes for simple installation on virtually any platform

Wide operating Temperature Range
Operates in Artic conditions to direct sunlight in desert environments

Industrial Connectors
No expensive or specialized connectors required for installation or use (this is for the IPI) The RPI uses Industry standard Amphenol and/or Phoenix Contact Connectors.

Color Options
Military Tan, Green or Gray. White Powder Coat, Grey/Black Anodized

Uses Standard Ethernet Cable
Combines power in and data out into a single economical ethernet cable

MIL Designed & Tested
MIL-STD-810H, MIL-STD-461G, UL, CE Mark and IP67 Rated

Standard Ground Lug
Ground lug built into the face of the unit and requires no tools

Optional Carrying Handle
Units can be order with permanent mounted carrying handle

Crush Resistant
Can actually be driven over

Waterproof Fully
Submersible to hold up to permanent outdoor use

Shatterproof LED Lenses
Lenses will not break or leak in extreme conditions

OVERVIEW

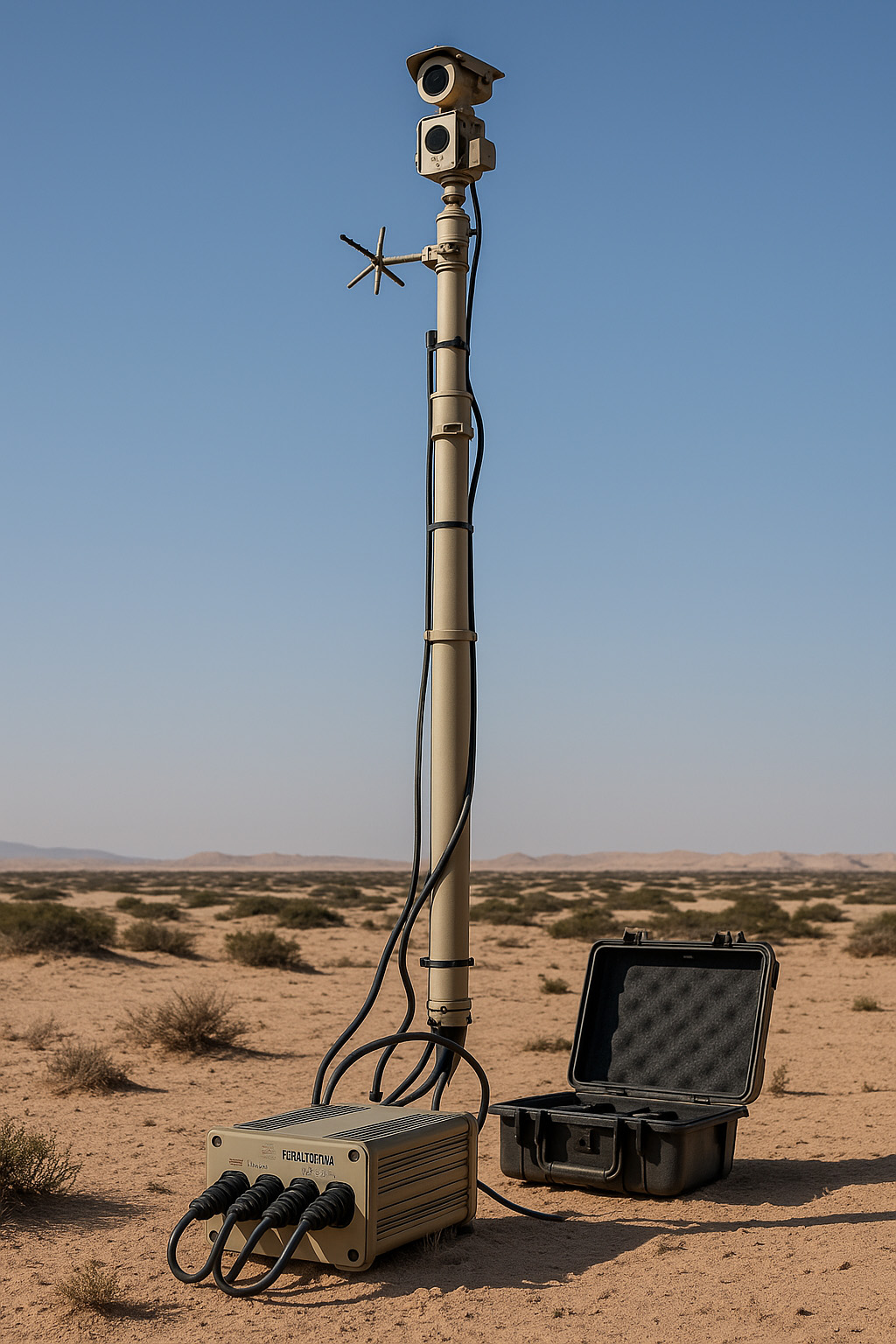

Whether remotely monitoring energy usage, road, and rail networks, border patrol or water treatment facilities, oil rigs or gas lines, you need eyes and ears on the ground.

RPS Rugged!+™ PoE Switch is designed and built to handle harsh mission critical environments in noisy electrical conditions. This MIL STD tested, IP67 rated PoE switch is capable of 90 watts per port across four gigabit ports. Two Multimode Fiber ports provide remote, high speed access. One device to interconnect and power communications equipment, cameras and sensors.

The Military Grade Switch is designed for tactical communications and is built to MIL-STD-810G. The highly reliable, light weight, small form factor is designed to take shock, vibe, high temps, high humidity and is passively cooled. The Terra Ferma RPI Rugged!+™PoE power supply is designed and tested to MIL-STD 810-H, MIL-STD 461.G, 461G and FIPS 140-2 validation.

QUIET, UNIVERSAL CONSTRUCTION

Rugged, all aluminum IP67 test chassis provides quiet operation while keeping the elements out. Universal mounting positions allow tower, pole, vehicle or no mounting at all to keep all your devices powered securely with an optional Modular Battery Back up with 4 hours to 3 day capacity.

SPECIFICATIONS & DETAILS

KEY SPECIFICATIONS

RUGGED!+™ IP66/67 RUGGEDIZATION

Designed for communications, security, or sensors in hostile & remote areas

Power over Ethernet (PoE) up to 90 watts per port. IEEE 802.3 AF/AT/BT

Lightweight Aluminum packaging: 18lbs

Automatically adjustable input voltage to a regulated 56VDC output

DOWNLOAD SPECIFICATION PDF

Patent Pending

TECHNICAL SPECIFICATIONS

Product Options:
Power any PoE device or multiple devices from one Switch
Optional Modular Battery Back up with 4 hours to 3-day capacity
Power over Ethernet (PoE) up to 90 watts per port, IEEE 802.3 AF/AT/BT

Color Options:
Military: Olive Drab Green or Desert Tan

Communications:
10/100/1000 Ethernet

Material Finish:
WD-CARC (FED STD 595C, 34094) over chemical conversion coating

Power:
Global AC Input: Input 90 – 264 VAC, 47 – 63Hz
Military Grade DC: 8.5 to 60VDC @ 40A
Optional Battery Backup: 48VDC @ 25amp-Hour
Optional Solar Power Input: 12 to 24VDC Solar Panel (Requires Battery Backup)

Power Control:
Automatically adjustable voltage to a regulated 56VDC output
Automatically adjustable load current 0.25A – 2A
Automatic input and/or output power reset

Connectivity:
Military Grade: Amphenol RJFTV & D38999 Receptacles

Indicators: AO Power: Green LED, DC Power: Green LED,
Fault: Green – Normal Operation, Amber – Minor Fault, Red – Critical Fault

Mounting:
Universal mounting positions allow tower, pole, vehicle or no mounting at all

Physical Dimensions:
15-3/8” x 10-7/8” x 4-1/2” | With Optional Battery Backup: 18” x 10-7/8” x 4-1/2”

Weight:
Aluminum packaging –18 lbs

Temperature:
Operational -40C to 60C (-40F to 140F)
Storage -40C to 75C (-40F to 167F)

RUGGED!+™ TECHNOLOGY

Terra Ferma’s trademarked RUGGED!+™ construction and finishing maintain product integrity in extremely harsh environments. We expect optimal performance to be achieved in the toughest manufacturing and tactical climates in the world.

TACTICAL ADVANTAGE

We created the RPS RUGGED!+™ technology to prevent outages in tactical hot zones across the globe. Whether in the high desert or intense manufacturing facilities, we’ve already thrived there.

SPECIFICATIONS & DETAILS

KEY SPECIFICATIONS

Power over Ethernet (PoE) up to 90 watts

Military or Commercial Grade

Designed for Wireless communications, cameras, and sensors in remote areas/

RUGGED!+™ IP66/67 ruggedization

Regulated 58VDC output with automatic voltage and current clamping

Lightweight Aluminum Packaging: 7lbs

DOWNLOAD SPECIFICATION PDF

Patent Pending

TECHNICAL SPECIFICATIONS

PRODUCT OPTIONS:
Power any PoE device or multiple devices from one Switch

Optional Modular Battery Back up with 30 minute to 3-day capacity

Power over Ethernet (PoE) up to 90 watts. per port

COLOR OPTIONS:
Military: Olive Drab Green or Desert Tan

Commercial: Battleship Gray

COMMUNICATIONS:
10/100/1000 Ethernet

MATERIAL FINISH:
WD-CARC (FED STD 595C, 34094) over chemical conversion coating

POWER:
Global AC Input: Input 90 – 264 VAC, 47 – 63Hz
Military Grade DC: 8.5 to 30VDC @ 40A

Commercial Grade DC: 10 – 60VDC @ 30A
Optional Battery Backup: 48VDC @ 1.5amp-Hour to 55amp-Hour

Optional Solar Power Input: 12 to 24VDC Solar Panel (Requires Battery Backup)

POWER CONTROL:
Automatically adjustable voltage to a regulated 58VDC output

Automatically adjustable load current 0.25A – 2A

Automatic input and/or output power reset

CONNECTIVITY:
Commercial Grade: IP67 Molex Receptacles

Military Grade: Amphenol RJFTV & D38999 Receptacles

INDICATORS:
Power: Green LED,
DC Power: Green LED,
Ethernet Activity: Green LED,
Fault: Green – Normal Operation, Amber – Minor Fault, Red – Critical Fault

MOUNTING:
Universal mounting positions allow tower, pole, vehicle or no mounting at all

PHYSICAL DIMENSIONS:
13-1/2” x ​7-1/16” x ​3-1/6”
Optional Battery Backup: 19” x 7-1/16” x 3-1/6”

WEIGHT:
Aluminum packaging – 7 lbs

RUGGED!+™ TECHNOLOGY

Terra Ferma develops products you can count on. Our power, networking and remote monitoring products were developed for our own use. They proved so reliable in extreme environments, our partner companies asked Terra Ferma to manufacture them for their use. Today, Terra Ferma produces hundreds of units per month supporting projects across the globe in all environmental conditions.
