ODI RUGGED!+™ OUTDOOR INDUSTRIAL PoE POWER SUPPLY

KEY FEATURES

  • Made in the USA
  • CE Mark & IP-67 Rated
  • Provides Data and Power over Ethernet to Power Device
  • 1 – Port 10/100/1000Tx RJ45 with IEEE 802.3 af/at/bt high power PoE
  • 1 – Port 10/100/1000Tx RJ45
  • Standard Operating Temperature Range: -40°C to 60°C

DOWNLOAD SPECIFICATION PDF

REQUEST INFORMATION

KEY FEATURES

  • Provides Data and Power over Ethernet to Power Device
  • 1 – Port 10/100/1000Tx RJ45 with IEEE 802.3 af/at/bt high power PoE
  • 1 – Port 10/100/1000Tx RJ45
  • Standard Operating Temperature Range: -40°C to 60°C
  • IP-67 Rugged!+ Metal Case Design

PRODUCT OVERVIEW

Terra Ferma’s American made Heavy Duty PoE Injector features a 10/100/1000TX Ethernet port supporting IEEE 802.3 af/at/bt high power PoE supplying up to 90 watts.

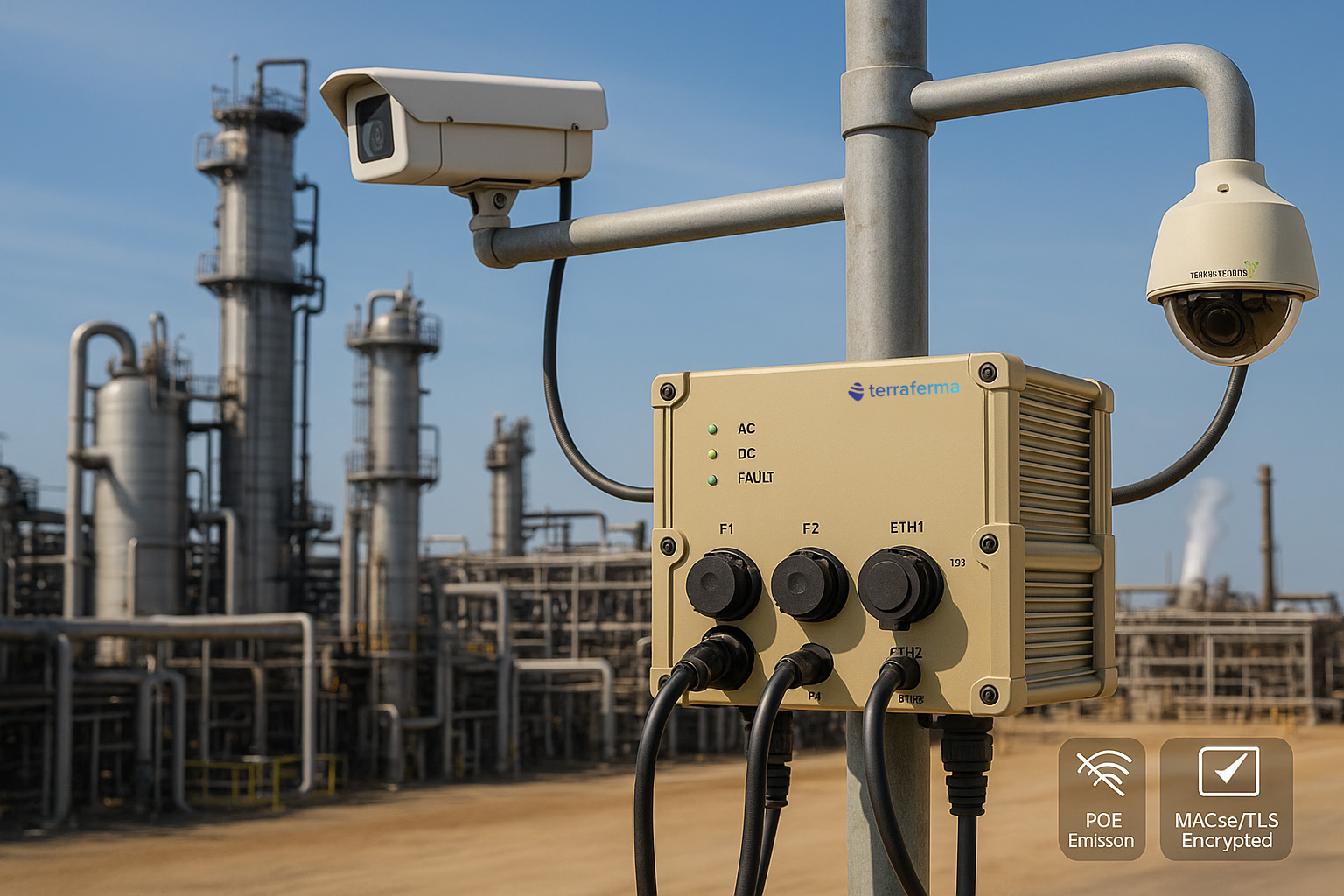

Designed for outdoor applications. The small form factor is ideal for saving space in applications such as pole mounting, security, power/utility, long haul connectivity and any other extreme ambient weather environments.

The unit has 90 to 260VAC global power inputs with over temperature & overload current protection. This product series supports pole mount as well as wall mountable orientations and extended operating temperature range.

QUIET, UNIVERSAL CONSTRUCTION

A fanless, rugged, all aluminum construction allows for a quiet operation while keeping the elements out. Universal mounting positions allow tower, pole, vehicle or no mounting at all to keep all your devices powered securely with an optional Modular Battery Back up with 30 minutes to 3-day capacity.

made in usa black logo
null

DESIGNED & MANUFACTURED IN THE USA

null

SMART ELECTRICAL FEATURES OF RUGGED!+™ PoE INJECTORS

Accepts Any AC Power Source
DC option available.

Automatic Regulated Voltage Output
Regardless of input power, output power remains a stable 56VDC PoE

Automatic Adjustable Load Current
Output current adjusts from zero to almost 2 Amps based on the power needed by the device(s) plugged in to the ethernet port. Based on IEEE standard 802.3 AF/AT/BT as negotiated by PoE devise being powered

Automatic Power Reset
Auto-reset input power connections or output power supply in the event of over/under voltage or current

Simple Operational Light Displays
Provides status of Power and PoE

Reverse Polarity Protection
Provides assurance against damage due to polarity cross-up at installation

Standard IEEE configuration
PoE up to 90 watts, IEEE 802.3 af/at/bt

No FIPS Requirements
Can be used on DoD Networks without waiver

null

CONSTRUCTION & ENVIRONMENTAL FEATURES OF RUGGED!+™ PoE INJECTORS

Sealed Housing Construction
Designed for outdoor use sustained high winds, driving rain, freeze/thaw, UV.

Fanless
No electric motors to fail and no filters to clean (reduces MTBF)

Light Weight
Can be mounted on mast or other locations where weight is a concern.

Optional Pole Mount Bracket
Makes for simple installation on virtually any platform

Wide operating Temperature Range
Operates in Artic conditions to direct sunlight in desert environments

Industrial Connectors
No expensive or specialized connectors required for installation or use.

Color Options
White Powder Coat, Grey/Black Anodized. Optional Military Tan/Green/Grey available.

Uses Standard Ethernet Cable
Combines power in and data out into a single economical ethernet cable

Standard Ground Lug
Ground lug built into the face of the unit and requires no tools

Optional Carrying Handle
Units can be order with permanent mounted carrying handle

Crush Resistant
Can actually be driven over

Waterproof Fully
Submersible to hold up to permanent outdoor use

Shatterproof LED Lenses
Lenses will not break or leak in extreme conditions

OVERVIEW

Small telecommunications sites rely on Power over Ethernet (PoE) to power radios, cameras and sensors.

[NEEDS CHANGES] The RUGGED!+™ (PoE) Power Over Ethernet Injector. This platform enables customers to offer wireless communications, cameras, and sensors in remote areas. Each (PoE) injector is equipped to provide clean power with the option of Battery Backup for power without interruption.

Military Units, Disaster Response Teams, and Law Enforcement personnel rely on real-time information. Most PoE injectors are small (15 watts) and require a climate controlled enclosure to protect them from the elements. The Terra Ferma Rugged!+™PoE Injectors are designed, tested,& certified to MIL-STD 810-H, MIL-STD 461.G, UL, CE Mark and IP67 rated.

Takes power from any source

We take power from any global source and deliver it filtered via ethernet to any communications, surveillance, sensor, or LED light scenario you have. The unit is designed to work in high EMI environments.

QUIET, UNIVERSAL CONSTRUCTION

A fanless, rugged, all aluminum construction allows for a quiet operation while keeping the elements out. Universal mounting positions allow tower, pole, vehicle or no mounting at all to keep all your devices powered securely with an optional Modular Battery Back up with 30 minutes to 3-day capacity.

SPECIFICATIONS & DETAILS

TECHNICAL SPECIFICATIONS

Dimensions
7.25” x 3.5” x 6.75” (W x H x D)

Weight
5 lbs

Operating Temperature
-40°C (-40°F) to +60°C (140°F)

Storage Temperature
-40°C (-40°F) to +85°C (185°F)

Humidity
0 to 95% non-condensing

Waterproofing
IP-67

Ethernet Connector(s)
RJ-45 with PG-16 Gland

AC Input
90-260 VAC, 47-63Hz

AC Input connector
Phoenix Contact PRC-3

Efficiency
Better than 90%

Over Current Protection
Trip point set between 110% to 120% of full load current

Hold up time
At least 20 milliseconds

Power factor
Better than 0.9

LED Indicators
Power and PoE

Poe Pin Assignment
V+ for pin 3, 4, 5, 6
V- for pin 1, 2, 7, 8

PoE Power Budget
90 Watts, cut off @ 99 Watts

Transfer Rate
14,880pps for Ethernet Port
148,800pps for Fast Ethernet Port
1,488,000pps for Gigabit Ethernet Port

EMI
FCC Class B

MTBF
100k hrs. MIL-HDBK-217F 25°C

TECHNICAL STANDARDS

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at 15-watt Power over Ethernet
IEEE 802.3af 30-watt Power over Ethernet
IEEE 802.3bt 60/90-watt Power over Ethernet

Mechanical Characteristics:
IP67 Protection – enclosure & connectors
Pole mounting, Wall mounting

Regulatory Approvals
EMI FCC Class B, RoHS Compliant, CE Mark, UL Pending

Warranty – 1 Year (Extended warranty available)

RUGGED!+™ TECHNOLOGY

Terra Ferma’s trademarked RUGGED!+™ construction and finishing maintain product integrity in extremely harsh environments. We expect optimal performance to be achieved in the toughest manufacturing and tactical climates in the world.

SPECIFICATIONS & DETAILS

TECHNICAL SPECIFICATIONS

Dimensions
7.25” x 3.5” x 6.75” (W x H x D)

Weight
5 lbs

Operating Temperature
-40°C (-40°F) to +70°C (158°F)

Storage Temperature
-40°C (-40°F) to +85°C (185°F)

Humidity
0 to 95% non-condensing

Waterproofing
IP-67

Ethernet Connector(s)
RJ-45 with PG-16 Gland

AC Input
90-260 VAC, 47-63Hz

AC Input connector
Phoenix Contact PRC-3

Efficiency
Better than 90%

Over Current Protection
Trip point set between 110% to 120% of full load current

Hold up time
At least 20 milliseconds

Power factor
Better than 0.9

LED Indicators
Power and PoE

Poe Pin Assignment
V+ for pin 3, 4, 5, 6
V- for pin 1, 2, 7, 8

PoE Power Budget
90 Watts, cut off @ 99 Watts

Transfer Rate
14,880pps for Ethernet Port
148,800pps for Fast Ethernet Port
1,488,000pps for Gigabit Ethernet Port

EMI
FCC Class B

MTBF
100k hrs. MIL-HDBK-217F 25°C

TACTICAL ADVANTAGE

We created the RPI RUGGED!+™ technology to prevent outages in tactical hot zones across the globe. Whether in the high desert or intense manufacturing facilities, we’ve already thrived there.
