RUGGED!+™ LIGHTNING PROTECTION UNIT

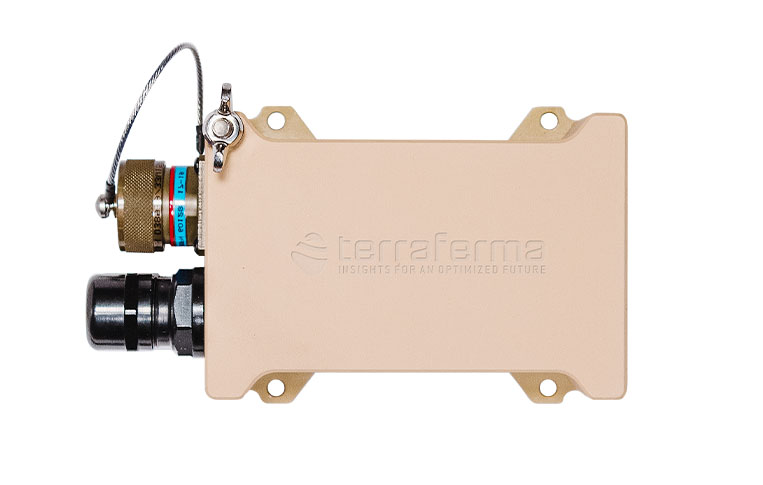

RUGGED!+ LPU – 38999 Universal Mount

KEY FEATURES

• Power over Ethernet (POE) passthrough up to 100 watts

• Lightweight Aluminum packaging of less than 4 lbs.

• MIL STD Data & Power Bulkheads

• IP66/67 ruggedization

DOWNLOAD SPECIFICATION PDF

GET A FREE QUOTE

KEY FEATURES

• Power over Ethernet (POE) passthrough up to 100 watts

• Designed to support POE enabled backhaul radios, PTZ Cameras and Sensor pods.

• Designed to support POE enabled backhaul radios, PTZ Cameras and Sensor pods

• RUGGED!+™ IP66/67 ruggedization

PRODUCT OVERVIEW

Universally configurable, designed to protect expensive, critical communications, surveillance, and sensor equipment from power surges by nearby lightning strikes.

Stay connected when it matters most. Protect your Power over Ethernet powered equipment from lightning strikes or other power surges. The RUGGED!+™ Lightning Protection Unit (LPU) can handle PoE connections up to 60VDC @ 100 Watts. The Lightning Protection Unit (LPU) is designed to protect microwave backhaul radios and other high end PoE enabled equipment from the harmful effects of power surges by nearby lightning strikes.

Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment, especially when mounted as high as 300m. The high-speed, high-current solid-state device is enclosed in a rugged metal enclosure to protect against high winds (150mph) and the elements.

OVERVIEW

Protect your Power over Ethernet powered equipment from lightning strikes or other power surges.

Stay connected when it matters most. Protect your Power over Ethernet powered equipment from lightning strikes or other power surges. The RUGGED!+™ Lightning Protection Unit (LPU) can handle PoE connections up to 60VDC @ 100 Watts. The Lightning Protection Unit (LPU) is designed to protect microwave backhaul radios and other high end PoE enabled equipment from the harmful effects of power surges by nearby lightning strikes.

Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment, especially when mounted as high as 300m. The high-speed, high-current solid-state device is enclosed in a rugged metal enclosure to protect against high winds (150mph) and the elements.

SPECIFICATIONS & DETAILS

KEY SPECIFICATIONS

Designed to support POE enabled backhaul radios, PTZ Cameras and Sensor pods

Designed for Tactical Operators

RUGGED!+™ IP66/67 ruggedization

Power over Ethernet (POE) passthrough up to 100 watts

Lightweight Aluminum packaging less than 4lbs

Universal Amphenol 38999 connector and PG-16 Cable Glands
DOWNLOAD SPECIFICATION PDF

TECHNICAL SPECIFICATIONS

COLOR OPTIONS:
TF-MIL-100W-ODG | Olive Drab Green

TF-MIL-100W-TAN | Desert Tan

COMMUNICATIONS:
10/100/1000 Ethernet

MATERIAL FINISH:
Aluminum with stainless steel hardware & green paint (FED STD 595C, 34094) over chemical conversion coating

POWER PASS THROUGH:
40V-60VDC @ 100W – RS485 Multi-Drop

CONNECTIVITY:
Line In: RJ-45 through PG-16 Cable Gland(s) (Included)

Line Out: Amphenol D38999/26WD35PN Receptacle

Amphenol D38999/26WD35SN Plug (or equivalent)

INDICATORS:
None

MOUNTING:
Direct bolt upright or inverted

PHYSICAL DIMENSIONS:
6-1/2” length x 3-3/4” width x 2-7/8” depth

WEIGHT:
3.4 lbs. (1.54kg)

ENVIRONMENTAL:
IP66/67

OPERATIONAL TEMPERATURE:
40°C to 60°C (-40°F to 140°F)
SURVIVAL TEMPERATURE:
40°C to 70°C (-40°F to 158°F)

RUGGED!+™ TECHNOLOGY

Terra Ferma develops products you can count on. Our power, networking and remote monitoring products were developed for our own use. They proved so reliable in extreme environments, our partner companies asked Terra Ferma to manufacture them for their use. Today, Terra Ferma produces hundreds of units per month supporting projects across the globe in all environmental conditions.

SPECIFICATIONS & DETAILS

KEY SPECIFICATIONS

Power over Ethernet (POE) passthrough up to 100 watts

Lightweight Aluminum packaging of less than 4 lbs.

MIL STD Data & Power Bulkheads

IP 66/67 ruggedization

DOWNLOAD SPECIFICATION PDF

TECHNICAL SPECIFICATIONS

COLOR OPTIONS:
TF-MIL-100W-ODG | Olive Drab Green

TF-MIL-100W-TAN | Desert Tan

COMMUNICATIONS:
10/100/1000 Ethernet

MATERIAL FINISH:
Aluminum with stainless steel hardware & green paint (FED STD 595C, 34094) over chemical conversion coating

POWER PASS THROUGH:
40V-60VDC @ 100W – RS485 Multi-Drop

CONNECTIVITY:
Line In: RJ-45 through PG-16 Cable Gland(s) (Included)

Line Out: Amphenol D38999/26WD35PN Receptacle

Amphenol D38999/26WD35SN Plug (or equivalent)

INDICATORS:
None

MOUNTING:
Direct bolt upright or inverted

PHYSICAL DIMENSIONS:
6-1/2” length x 3-3/4” width x 2-7/8” depth

WEIGHT:
3.4 lbs. (1.54kg)

ENVIRONMENTAL:
IP66/67

OPERATIONAL TEMPERATURE:
40°C to 60°C (-40°F to 140°F)
SURVIVAL TEMPERATURE:
40°C to 70°C (-40°F to 158°F)

RUGGED!+™ TECHNOLOGY

Terra Ferma develops products you can count on. Our power, networking and remote monitoring products were developed for our own use. They proved so reliable in extreme environments, our partner companies asked Terra Ferma to manufacture them for their use. Today, Terra Ferma produces hundreds of units per month supporting projects across the globe in all environmental conditions.
